Industry Leading Dielectric Performance

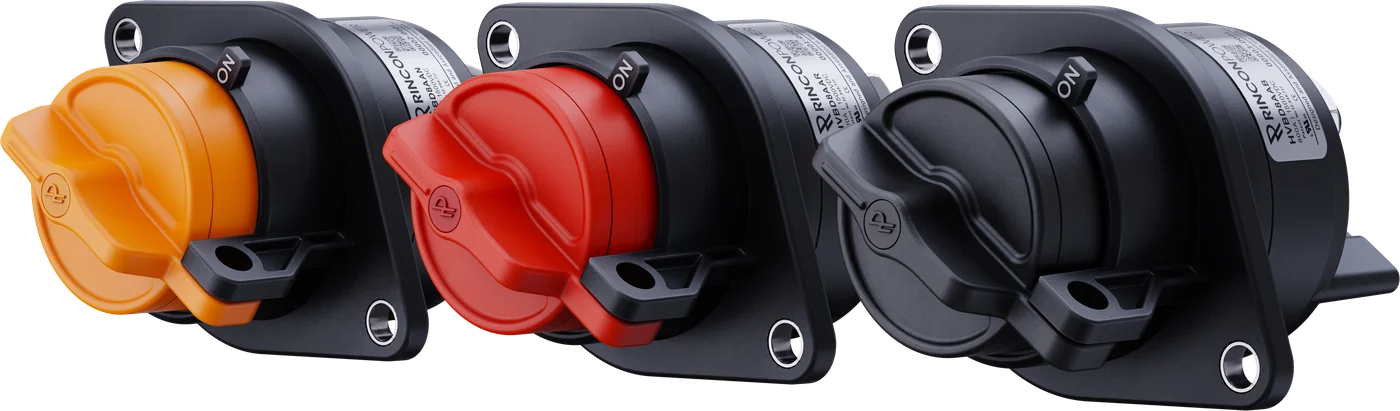

High Voltage Battery Disconnects
Manual safety disconnect (MSD) switches for isolating high voltage battery packs during maintenance or storage, compatible with common OSHA lockout/tagout (LOTO) procedures. Ultra-low contact resistance when on, and isolation up to 1,500 VDC when off.
- Continuous current
- 300 to 800 A
- Isolation voltage, up to
- 1,500 VDC
- Sizes
- 4
- Handle colors
- 3
300 A1,500 VHVBD3 Series
1,500 V High Voltage Battery Disconnect
- Now rated for 1,500 V
- 300 A continuous duty
- Hermetically sealed. Gas Filled. Intrinsically safe.
- Auxiliary contacts (optional)
- Industry leading dielectric performance
- 400 A1,500 V
HVBD4 Series
1,500 V High Voltage Battery Disconnect
- Now rated for 1,500 V
- 400 A continuous duty
- Hermetically sealed. Gas Filled. Intrinsically safe.
- Auxiliary contacts (optional)
- Industry leading dielectric performance
- 600 A1,500 V
HVBD6 Series
1,500 V High Voltage Battery Disconnect
- Now rated for 1,500 V
- 600 A continuous duty
- Hermetically sealed. Gas Filled. Intrinsically safe.
- Auxiliary contacts (optional)
- Industry leading dielectric performance.
- 800 A1,500 V
HVBD8 Series
1,500 V High Voltage Battery Disconnect
- All new internal design to improve current carry performance
- 800 A continuous duty
- Same external footprint
- Hermetically sealed. Gas Filled. Intrinsically safe.
- Auxiliary contact (optional)
About our battery disconnects
Industry Leading Dielectric Performance
- Current ratings up to 800 A
- Voltage ratings up to 1,500 V
- Hermetically Sealed. Gas Filled. Intrinsically Safe.
Rincon Power's High Voltage Battery Disconnects deliver exceptional performance and reliability, even in harsh environments. Our patented hermetically sealed contact chamber with a welded bellows design ensures high-temperature performance (up to 175°C) and ultra-low contact resistance in an oxygen-free environment. Unlike traditional designs that use o-ring seals, our HVBDs feature the only hermetically sealed contact chamber on the market, guaranteeing 1,500 V isolation and durability at any altitude. The welded bellows actuator provides superior fatigue strength, extending the mechanical life of the device. Optional SPDT auxiliary contacts offer additional flexibility for system integration.
To improve installation and prevent accidental damage, the devices feature integrated compression limiters into the mounting holes, which increase the housing's crush strength and minimize the loosening of fasteners over time.
Ideal for isolating high voltage and carrying current, our HVBDs safely disconnect high voltage battery packs during maintenance and storage. If your application requires make/break power switching, contact us for assistance. Note: these devices are not intended for make/break power switching above 100 V.
Not sure which battery disconnect fits?
Our application engineers will spec it with you, or build a custom product.
