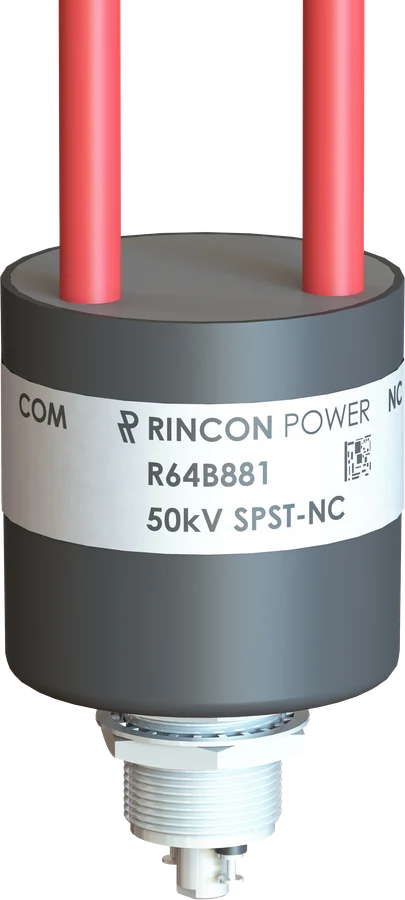

High voltage relay
R64B Series
The R64B series high voltage relay is designed for make-only load switching applications, commonly used in capacitive discharge scenarios such as electrostatic discharge (ESD) and lightning strike protection. Featuring a Single Pole Single Throw, Normally Closed (SPST-NC) configuration, this relay ensures reliable operation with a 10 A continuous carry rating, making it ideal for demanding high-voltage systems up to 50 kV. Backfilled with inert gas to provide optimal insulation and arc suppression, the R64B series offers superior performance in critical applications requiring precise, fast switching. Its robust design ensures longevity and reliability, even in harsh conditions. For applications needing efficient isolation and load switching in high voltage environments, the R64B delivers unmatched reliability and performance.
Key specifications
R64B Series at a glance
- Voltage
- 50 kV
- Current
- 10 A
- Contact form
- SPST-NC
- Dielectric
- Inert Gas
| Voltage rating | 50 kV |
|---|---|
| Current rating (continuous, DC or 60 Hz) | 10 A |
| Contact arrangement | SPST-NC |
| Contact form | B = Normally Closed |
| Operation | Make Only |
| Coil voltage | 12 or 26.5 VDC |
| Construction | Bottle |
| Dielectric | Inert Gas |
| Contact material | Molybdenum/Tungsten |
| HV termination | Flying Leads |
| Coil termination | Turret Terminals |
| Mounting | Through Panel |
Datasheet
Full ratings, dimensions and drawings are in the R64B Series datasheet (PDF).
Download datasheetGet a QuoteNeed something different?
We build custom relays. Our application engineers will spec one to your requirement.
Ask about a custom relayPart numbers
Build your R64B part number
Choose each option and the part number updates. Copy it, or request a quote for that exact part.
Options and part numbers from the R64B datasheet. Other combinations may be available as custom builds.
All standard R64B part numbers
Datasheet specifications
R64B Series performance
| Contact Form | B |
|---|---|
| Contact Arrangement | SPST-NC |
| Max Operating Voltage (Peak, between Contacts and Contacts to Base) kV dc or 60 Hz (Max Leakage Current: 15µA) | 50 kV Peak |
| Test Voltage (Peak, between Contacts and Contacts to Base) kV dc or 60 Hz (Max Leakage Current: 15µA) | 55 kV Peak |
| Continuous Current DC or 60 Hz | 10 Amps |
| Load Switching (Make and Break) | (Consult Factory) |
| Coil Hi-Pot (V RMS, 60 Hz) | 500 V |
| Contact Resistance (Max) @ 1 A | 1.0 Ω |
| Operate Time (Max, incl bounce) | 15 ms |
| Release Time (Max) | 15 ms |
| Shock - Operating, 1/2 Sine, 11 ms | 10 G’s |
| Vibration (55-500 Hz Peak) | 10 G’s |
| Operating Temperature | -55 to 85 °C |
| Mechanical life | 1,000,000 Cycles |
| Weight | 336 g |
| Coil (25 °C) | 12.0 VDC | 26.5 VDC |
|---|---|---|
| Nominal Voltage | 12.0 VDC | 26.5 VDC |
| Pick-up Voltage, Max | 9 VDC | 18 VDC |
| Drop-out Voltage | 0.5-5 VDC | 1-10 VDC |
| Coil Resistance (±10%) | 18 Ω | 75 Ω |
From the R64B datasheet. The datasheet notes on coil temperature effects apply. Download the datasheet.
Request a quote
Get pricing for the R64B Series
Tell us the part number if you have one, and how many you need. An application engineer will reply with pricing and lead time.
Prefer to talk? Call +1 805 456 6424 or email [email protected].
Thanks, we have your request
An application engineer will reply with pricing and lead time.
Need it sooner? Call +1 805 456 6424 or email [email protected].
Applications
Where the R64B Series is used
ESD Protection and Controlled Discharge
Switching for ESD protection systems requiring controlled discharge paths.
High Voltage Test Equipment
HV switching for test stands, labs, hipot systems, and simulation equipment.
Lightning and Surge Simulation
Switching for lightning strike and surge simulation and transient testing equipment.
Medical Devices and Therapy Systems
High voltage switching for medical diagnostic, therapy, and specialty equipment.
Scientific and Analytical Instrumentation
HV switching for scientific instruments, measurement systems, and laboratory setups.
