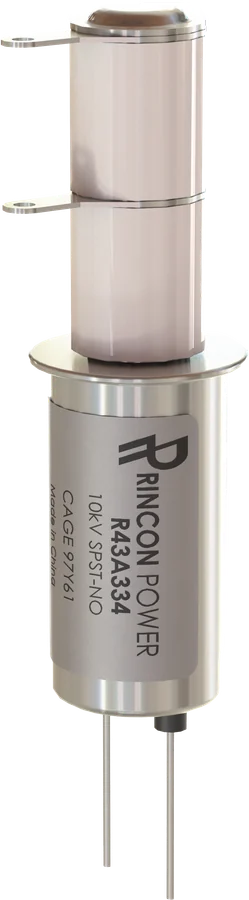

High voltage relay
R43A Series
R43A series high voltage relays are designed to meet demanding load requirements at higher voltages. While still a compact form factor, the elongated stacked ceramic body allows for increased isolation when compared to the R41A. The RF-rated design ensures exceptional performance in applications requiring precise switching and reliable isolation. Equipped with tungsten contacts, the R43A delivers enhanced make and break load switching capabilities. Common applications include antenna tuning units (ATUs) and high voltage test equipment. Featuring a Single Pole Single Throw, Normally Open (SPST-NO) configuration, this relay offers a simple yet effective solution for isolation, utilizing a single stationary contact to maintain isolation until coil power is applied.
Key specifications
R43A Series at a glance
- Voltage
- 10 kV
- Current
- 25 A
- Contact form
- SPST-NO
- Dielectric
- Vacuum
| Voltage rating | 10 kV |
|---|---|
| Current rating (continuous, DC or 60 Hz) | 25 A |
| Contact arrangement | SPST-NO |
| Contact form | A = Normally Open |
| Operation | Make/Break Load Switching |
| Coil voltage | 12 or 26.5 VDC |
| Construction | Stacked ceramic |
| Dielectric | Vacuum |
| Contact material | Molybdenum/Tungsten |
| HV termination | Solder Tab |
| Coil termination | Bus Wire |
| Mounting | Standard or 3-hole Flange |
Datasheet
Full ratings, dimensions and drawings are in the R43A Series datasheet (PDF).
Download datasheetGet a QuoteNeed something different?
We build custom relays. Our application engineers will spec one to your requirement.
Ask about a custom relayPart numbers
Build your R43A part number
Choose each option and the part number updates. Copy it, or request a quote for that exact part.
Options and part numbers from the R43A datasheet. Other combinations may be available as custom builds.
All standard R43A part numbers
Datasheet specifications
R43A Series performance
| Contact Arrangement | Form A, SPST-NO or Form B, SPST-NC |
|---|---|
| Max Operating Voltage (Peak, between Contacts and Contacts to Base) (Max Leakage Current: 15µA) | 10 kV dc or 60 Hz; 7 kV dc at 2.5 MHz; 6 kV dc at 16 MHz; 4 kV dc at 32 MHz |
| Test Voltage (Peak, between Contacts and Contacts to Base) (Max Leakage Current: 15µA) | 11 kV dc or 60 Hz |
| Continuous Current, Max DC or 60 Hz | 25 A |
| Continuous Current, Max 2.5 MHz | 20 A |
| Continuous Current, Max 16 MHz | 13 A |
| Continuous Current, Max 32 MHz | 10 A |
| Capacitance – Across Open Contacts | 1.2 pF |
| Capacitance – Contacts to Ground | 1.2 pF |
| Coil Hi-Pot (V RMS, 60 Hz) | 500 V |
| Contact Resistance (Max) | 0.02 ohm @ 1 A |
| Operate Time (Max, incl bounce) | 10 ms |
| Release Time (Max) | 10 ms |
| Shock, Operating, 1/2 Sine, 11 ms | 50 G |
| Vibration, Operating, Sine (55 Hz-2,000Hz) | 10 G |
| Operating Temperature | -55°C to 125°C |
| Mechanical life | 2,000,000 cycles |
| Weight | 28 g |
| Coil (25 °C) | 12 VDC | 26.5 VDC |
|---|---|---|
| Nominal Voltage | 12 VDC | 26.5 VDC |
| Pick-up Voltage, Max | 8 VDC | 16 VDC |
| Drop-out Voltage | 0.5-5 VDC | 1.0-10 VDC |
| Coil Resistance | 70 Ω | 290 Ω |
From the R43A datasheet. The datasheet notes on coil temperature effects apply. Download the datasheet.
Request a quote
Get pricing for the R43A Series
Tell us the part number if you have one, and how many you need. An application engineer will reply with pricing and lead time.
Prefer to talk? Call +1 805 456 6424 or email [email protected].
Thanks, we have your request
An application engineer will reply with pricing and lead time.
Need it sooner? Call +1 805 456 6424 or email [email protected].
Applications
Where the R43A Series is used
High Power Test Systems and Load Banks
Switching and protection for load banks, dynos, and high-power test setups.
Medical Devices and Therapy Systems
High voltage switching for medical diagnostic, therapy, and specialty equipment.
Scientific and Analytical Instrumentation
HV switching for scientific instruments, measurement systems, and laboratory setups.
