High voltage relay
R43C Series

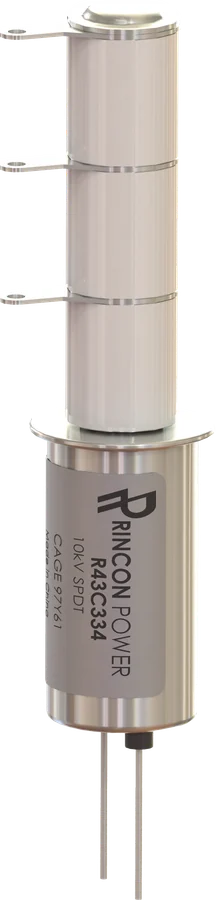

R43C series high voltage relays are engineered to meet demanding load requirements at higher voltages. While still a compact form factor, the elongated stacked ceramic body allows for increased isolation when compared to the R41A. The RF-rated design ensures exceptional performance in applications requiring precise switching and reliable isolation. Equipped with tungsten contacts, the R43C delivers enhanced make and break load switching capabilities. Common applications include antenna tuning units (ATUs) and high voltage test equipment. The Single Pole Double Throw (SPDT) configuration provides design flexibility by incorporating both Normally Open (NO) and Normally Closed (NC) contact sets within a single relay. Continuity transfers between the contact sets when the coil is powered on or off.
Key specifications
R43C Series at a glance
- Voltage
- 10 kV
- Current
- 25 A
- Contact form
- SPDT
- Dielectric
- Vacuum
| Voltage rating | 10 kV |
|---|---|
| Current rating (continuous, DC or 60 Hz) | 25 A |
| Contact arrangement | SPDT |
| Contact form | C = Single Pole Double Throw |
| Operation | Make/Break Load Switching |
| Coil voltage | 12 or 26.5 VDC |
| Construction | Stacked ceramic |
| Dielectric | Vacuum |
| Contact material | Molybdenum/Tungsten |
| HV termination | Solder Tab |
| Coil termination | Bus Wire |
| Mounting | Standard or 3-hole Flange |
Datasheet
Full ratings, dimensions and drawings are in the R43C Series datasheet (PDF).
Download datasheetGet a QuoteNeed something different?
We build custom relays. Our application engineers will spec one to your requirement.
Ask about a custom relayPart numbers
Build your R43C part number
Choose each option and the part number updates. Copy it, or request a quote for that exact part.
Options and part numbers from the R43C datasheet. Other combinations may be available as custom builds.
All standard R43C part numbers
Datasheet specifications
R43C Series performance
| Contact Arrangement | Form C, SPDT (Single Pole Double Throw) |
|---|---|
| Max Operating Voltage (Peak, between Contacts and Contacts to Base) (Max Leakage Current: 15µA) | 10 kV dc or 60 Hz; 7 kV dc at 2.5 MHz; 6 kV dc at 16 MHz; 4 kV dc at 32 MHz |
| Test Voltage (Peak, between Contacts and Contacts to Base) (Max Leakage Current: 15µA) | 11 kV dc or 60 Hz |
| Continuous Current, Max DC or 60 Hz | 25 A |
| Continuous Current, Max 2.5 MHz | 20 A |
| Continuous Current, Max 16 MHz | 13 A |
| Continuous Current, Max 32 MHz | 10 A |
| Capacitance – Across Open Contacts | 1.2 pF |
| Capacitance – Contacts to Ground | 1.2 pF |
| Coil Hi-Pot (V RMS, 60 Hz) | 500 V |
| Contact Resistance (Max) | 0.02 ohm @ 1 A |
| Operate Time (Max, incl bounce) | 10 ms |
| Release Time (Max) | 10 ms |
| Shock, Operating, 1/2 Sine, 11 ms | 50 G |
| Vibration, Operating, Sine (55 Hz-2,000Hz) | 10 G |
| Operating Temperature | -55°C to 125°C |
| Mechanical life | 2,000,000 cycles |
| Weight | 28 g |
| Coil (25 °C) | 12 VDC | 26.5 VDC |
|---|---|---|
| Nominal Voltage | 12 VDC | 26.5 VDC |
| Pick-up Voltage, Max | 8 VDC | 16 VDC |
| Drop-out Voltage | 0.5-5 VDC | 1.0-10 VDC |
| Coil Resistance | 70 Ω | 290 Ω |
From the R43C datasheet. The datasheet notes on coil temperature effects apply. Download the datasheet.
Request a quote
Get pricing for the R43C Series
Tell us the part number if you have one, and how many you need. An application engineer will reply with pricing and lead time.
Prefer to talk? Call +1 805 456 6424 or email [email protected].
Thanks, we have your request
An application engineer will reply with pricing and lead time.
Need it sooner? Call +1 805 456 6424 or email [email protected].
Applications
Where the R43C Series is used
High Power Test Systems and Load Banks
Switching and protection for load banks, dynos, and high-power test setups.
Medical Devices and Therapy Systems
High voltage switching for medical diagnostic, therapy, and specialty equipment.
Scientific and Analytical Instrumentation
HV switching for scientific instruments, measurement systems, and laboratory setups.
