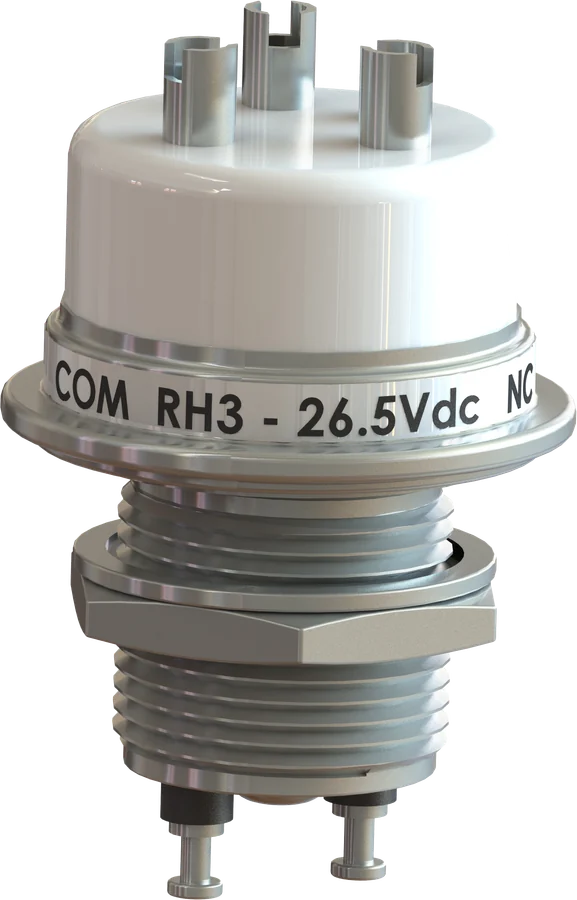

High voltage relay
RH3 Series
RH3 series high voltage relays are a variant of the RH1, featuring the same ultra-compact capsule style form factor and 3.5 kV voltage rating but with molybdenum/tungsten contacts for limited make and break load switching. The RH3 handles hot switching better than the RH1, but its higher contact resistance results in a reduced 18 amp continuous current carry rating, so the RH1 is the better choice for carry only use. The Single Pole Double Throw (SPDT) configuration provides design flexibility by incorporating both Normally Open (NO) and Normally Closed (NC) contact sets within a single relay. Continuity transfers between the contact sets when the coil is powered on or off.
Key specifications
RH3 Series at a glance
- Voltage
- 3.5 kV
- Current
- 18 A
- Contact form
- SPDT
- Dielectric
- Vacuum
| Voltage rating | 3.5 kV |
|---|---|
| Current rating (continuous, DC or 60 Hz) | 18 A |
| Contact arrangement | SPDT |
| Contact form | C = Single Pole Double Throw |
| Operation | Make/Break Load Switching - Limited |
| Coil voltage | 12 or 26.5 VDC |
| Construction | Capsule |
| Dielectric | Vacuum |
| Contact material | Molybdenum/Tungsten |
| HV termination | Solder Pot |
| Coil termination | Turret Terminals |
| Mounting | Through Panel |
Datasheet
Full ratings, dimensions and drawings are in the RH3 Series datasheet (PDF).
Download datasheetGet a QuoteNeed something different?
We build custom relays. Our application engineers will spec one to your requirement.
Ask about a custom relayPart numbers
Build your RH3 part number
Choose each option and the part number updates. Copy it, or request a quote for that exact part.
Options and part numbers from the RH3 datasheet. Other combinations may be available as custom builds.
All standard RH3 part numbers
Datasheet specifications
RH3 Series performance
| Contact Arrangement | Form C, SPDT |
|---|---|
| Max Operating Voltage (Peak, between Contacts and Contacts to Base) (Max Leakage Current: 15µA) | 3.5 kV dc or 60 Hz |
| Max Test Voltage (Peak, between Contacts and Contacts to Base) (Max Leakage Current: 15µA) | 5.0 kV dc or 60 Hz |
| Continuous Current, Max dc or 60 Hz | 18 A |
| Load Switching (Make and Break) | Consult Factory |
| Coil Hi-Pot (V RMS, 60 Hz) | 500 V |
| Contact Resistance (Max) | 0.02 ohm @ 1 A |
| Operate Time (Max, incl bounce) | 6 ms |
| Release Time (Max) | 6 ms |
| Shock, Operating, 1/2 Sine, 11 ms | 50 G |
| Vibration, Operating, Sine (55-2,000 Hz) | 10 G |
| Operating Temperature | -55°C to 125°C |
| Mechanical life | 2,000,000 cycles |
| Weight | 28 g |
| Coil (25 °C) | 12 VDC | 26.5 VDC |
|---|---|---|
| Nominal Voltage | 12 VDC | 26.5 VDC |
| Pick-up Voltage, Max | 8 VDC | 16 VDC |
| Drop-out Voltage | 0.5-5 VDC | 1.0-10 VDC |
| Coil Resistance | 80 Ω | 335 Ω |
From the RH3 datasheet. The datasheet notes on coil temperature effects apply. Download the datasheet.
Request a quote
Get pricing for the RH3 Series
Tell us the part number if you have one, and how many you need. An application engineer will reply with pricing and lead time.
Prefer to talk? Call +1 805 456 6424 or email [email protected].
Thanks, we have your request
An application engineer will reply with pricing and lead time.
Need it sooner? Call +1 805 456 6424 or email [email protected].
Applications
Where the RH3 Series is used
High Power Test Systems and Load Banks
Switching and protection for load banks, dynos, and high-power test setups.
Medical Devices and Therapy Systems
High voltage switching for medical diagnostic, therapy, and specialty equipment.
Scientific and Analytical Instrumentation
HV switching for scientific instruments, measurement systems, and laboratory setups.
