High voltage relay
R41B Series

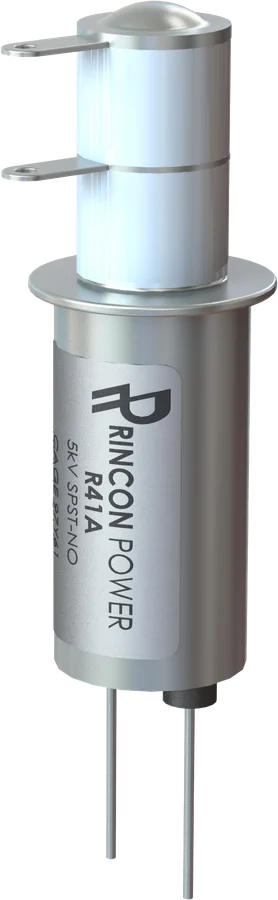

R41B series high voltage relays are engineered to meet demanding load requirements while maintaining a compact design. The RF-rated design ensures exceptional performance in applications requiring precise switching and reliable isolation up to 5 kV. Equipped with tungsten contacts, the R41B delivers enhanced make and break load switching capabilities and can continuously carry up to 30 amps. Common applications include antenna tuning units (ATUs) and high voltage test equipment. Featuring a Single Pole Single Throw, Normally Closed (SPST-NC) configuration, this relay offers a simple yet effective solution for isolation, utilizing a single stationary contact to ensure continuity until coil power is applied, at which point the contacts open to provide isolation.
Key specifications
R41B Series at a glance
- Voltage
- 5 kV
- Current
- 30 A
- Contact form
- SPST-NC
- Dielectric
- Vacuum
| Voltage rating | 5 kV |
|---|---|
| Current rating (continuous, DC or 60 Hz) | 30 A |
| Contact arrangement | SPST-NC |
| Contact form | B = Normally Closed |
| Operation | Make/Break Load Switching |
| Coil voltage | 12 or 26.5 VDC |
| Construction | Stacked ceramic |
| Dielectric | Vacuum |
| Contact material | Molybdenum/Tungsten |
| HV termination | Solder Tab |
| Coil termination | Bus Wire |
| Mounting | Standard or 3-hole Flange |
Datasheet
Full ratings, dimensions and drawings are in the R41B Series datasheet (PDF).
Download datasheetGet a QuoteNeed something different?
We build custom relays. Our application engineers will spec one to your requirement.
Ask about a custom relayPart numbers
Build your R41B part number
Choose each option and the part number updates. Copy it, or request a quote for that exact part.
Options and part numbers from the R41B datasheet. Other combinations may be available as custom builds.
All standard R41B part numbers
Datasheet specifications
R41B Series performance
| Contact Arrangement | Form A, SPST-NO or Form B, SPST-NC |
|---|---|
| Max Operating Voltage (Peak, between Contacts and Contacts to Base) (Max Leakage Current: 15µA) | 5.0 kV dc or 60 Hz; 4.5 kV dc at 2.5 MHz; 3.5 kV dc at 16 MHz; 2.8 kV dc at 32 MHz |
| Test Voltage (Peak, between Contacts and Contacts to Base) (Max Leakage Current: 15µA) | 6 kV dc or 60 Hz |
| Continuous Current, Max DC or 60 Hz | 30 A |
| Continuous Current, Max 2.5 MHz | 24 A |
| Continuous Current, Max 16 MHz | 16 A |
| Continuous Current, Max 32 MHz | 12 A |
| Capacitance – Across Open Contacts | 1.2 pF |
| Capacitance – Contacts to Ground | 1.2 pF |
| Coil Hi-Pot (V RMS, 60 Hz) | 500 V |
| Contact Resistance (Max) | 0.02 ohm @ 1 A |
| Operate Time (Max, incl bounce) | 10 ms |
| Release Time (Max) | 10 ms |
| Shock - Operating, 1/2 Sine, 11 ms | 50 G |
| Vibration, Operating, Sine (55-2,000 Hz) | 10 G |
| Operating Temperature | -55°C to 125°C |
| Ingress Protection | Hermetic, exceeds IP67 and IP6K9 |
| Mechanical life | 2,000,000 cycles |
| Weight | 28 g |
| Coil (25 °C) | 12 VDC | 26.5 VDC |
|---|---|---|
| Nominal Voltage | 12 VDC | 26.5 VDC |
| Pick-up Voltage, Max | 8 VDC | 16 VDC |
| Drop-out Voltage | 0.5-5 VDC | 1.0-10 VDC |
| Coil Resistance | 70 Ω | 290 Ω |
From the R41B datasheet. The datasheet notes on coil temperature effects apply. Download the datasheet.
