High voltage relay
R41C Series

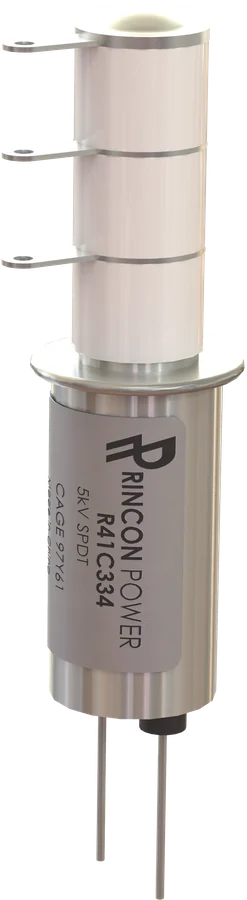

R41C series high voltage relays are engineered to meet demanding load requirements while maintaining a compact form factor. The RF-rated design ensures exceptional performance in applications requiring precise switching and reliable isolation up to 5 kV. Equipped with tungsten contacts, the R41C delivers enhanced make and break load switching capabilities and can continuously carry up to 30 amps. Common applications include antenna tuning units (ATUs) and high voltage test equipment. The Single Pole Double Throw (SPDT) configuration provides design flexibility by incorporating both Normally Open (NO) and Normally Closed (NC) contact sets within a single relay. Continuity transfers between the contact sets when the coil is powered on or off.
Key specifications
R41C Series at a glance
- Voltage
- 5 kV
- Current
- 30 A
- Contact form
- SPDT
- Dielectric
- Vacuum
| Voltage rating | 5 kV |
|---|---|
| Current rating (continuous, DC or 60 Hz) | 30 A |
| Contact arrangement | SPDT |
| Contact form | C = Single Pole Double Throw |
| Operation | Make/Break Load Switching |
| Coil voltage | 12 or 26.5 VDC |
| Construction | Stacked ceramic |
| Dielectric | Vacuum |
| Contact material | Molybdenum/Tungsten |
| HV termination | Solder Tab |
| Coil termination | Bus Wire |
| Mounting | Standard or 3-hole Flange |
Datasheet
Full ratings, dimensions and drawings are in the R41C Series datasheet (PDF).
Download datasheetGet a QuoteNeed something different?
We build custom relays. Our application engineers will spec one to your requirement.
Ask about a custom relayPart numbers
Build your R41C part number
Choose each option and the part number updates. Copy it, or request a quote for that exact part.
Options and part numbers from the R41C datasheet. Other combinations may be available as custom builds.
All standard R41C part numbers
Datasheet specifications
R41C Series performance
| Contact Arrangement | Form C, SPDT (Single Pole Double Throw) |
|---|---|
| Max Operating Voltage (Peak, between Contacts and Contacts to Base) (Max Leakage Current: 15µA) | 5.0 kV dc or 60 Hz; 4.5 kV dc at 2.5 MHz; 3.5 kV dc at 16 MHz; 2.8 kV dc at 32 MHz |
| Test Voltage (Peak, between Contacts and Contacts to Base) (Max Leakage Current: 15µA) | 6 kV dc or 60 Hz |
| Continuous Current, Max DC or 60 Hz | 30 A |
| Continuous Current, Max 2.5 MHz | 24 A |
| Continuous Current, Max 16 MHz | 16 A |
| Continuous Current, Max 32 MHz | 12 A |
| Capacitance – Across Open Contacts | 1.2 pF |
| Capacitance – Contacts to Ground | 1.2 pF |
| Coil Hi-Pot (V RMS, 60 Hz) | 500 V |
| Contact Resistance (Max) | 0.02 ohm @ 1 A |
| Operate Time (Max, incl bounce) | 10 ms |
| Release Time (Max) | 10 ms |
| Shock, Operating, 1/2 Sine, 11 ms | 50 G |
| Vibration, Operating, Sine (55 Hz-2,000Hz) | 10 G |
| Operating Temperature | -55°C to 125°C |
| Mechanical life | 2,000,000 cycles |
| Weight | 28 g |
| Coil (25 °C) | 12 VDC | 26.5 VDC |
|---|---|---|
| Nominal Voltage | 12 VDC | 26.5 VDC |
| Pick-up Voltage, Max | 8 VDC | 16 VDC |
| Drop-out Voltage | 0.5-5 VDC | 1.0-10 VDC |
| Coil Resistance | 70 Ω | 290 Ω |
From the R41C datasheet. The datasheet notes on coil temperature effects apply. Download the datasheet.
