High Voltage Contactors

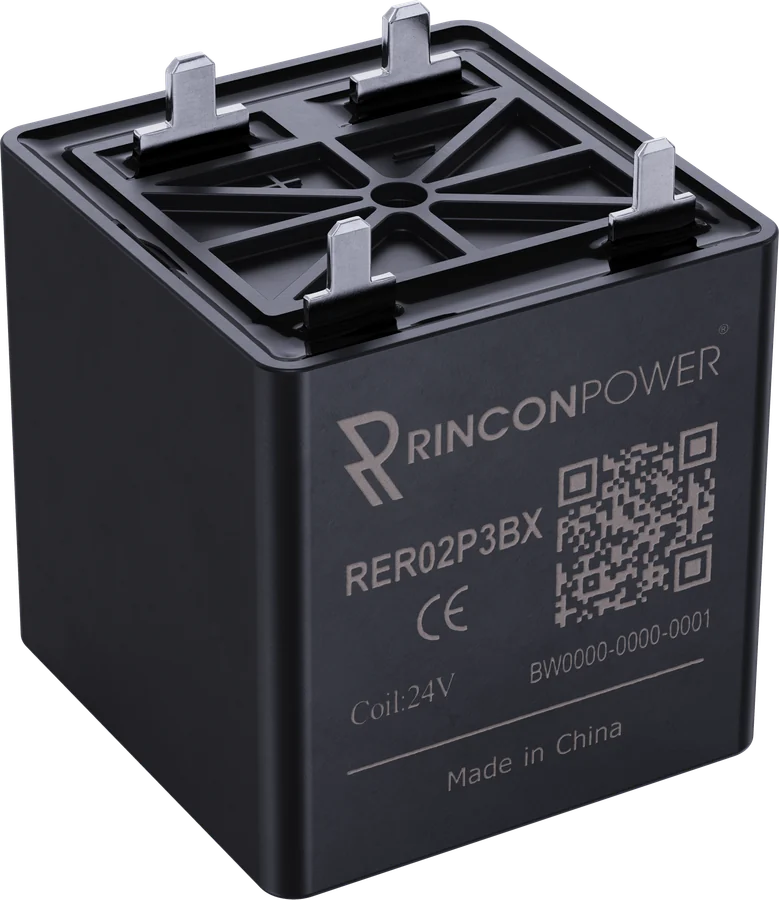

RER02 Series

The RER02 Series are compact high voltage DC relays designed primarily for pre-charge and auxiliary DC control applications. Despite their small size, these relays provide reliable switching capability for controlled capacitor charging, DC bus discharge, and auxiliary circuit control in modern DC power systems. Featuring a construction and a widely adopted industry-standard form factor, the RER02 Series offers a cost-effective and dependable solution for applications where space is limited and full-size power contactors are not required. These relays are commonly used in electric vehicle power electronics, industrial equipment, and other DC control applications.

Continuous duty
40 A
System voltage
1,000 VDC
Mechanical life
1,000,000 cycles

Features and applications

RER02 at a glance

Features

  • Compact DC relay construction
  • Optimized for pre-charge and DC control applications
  • Industry-standard footprint for easy integration
  • Low power coil options available
  • Fast operate and release times
  • Suitable for capacitive charging and discharge circuits
  • RoHS and REACH compliant

Typical applications

  • Pre-charge circuits for inverters and DC power systems
  • Capacitor charging and inrush current control
  • Electric vehicle power electronics
  • Industrial DC control and signaling
  • Auxiliary DC power switching
  • HVAC system controls

Datasheet

Graphs, dimensions, drawings and installation notes are in the RER02 datasheet (Rev F).

Download datasheet

Datasheet specifications

RER02 performance

Specifications
Contact ArrangementForm X, SPST NO
Max Switching Voltage1,000 VDC
Dielectric Withstand Voltage (Max Leakage Current: 1 mA)3,000 VAC, 1 minute contacts to coil
Dielectric Withstand Voltage (Max Leakage Current: 1 mA)3,000 VAC, 1 minute across open contacts
Continuous Current (4 mm² conductor)20 A
Continuous Current (13 mm² conductor)40 A
Overload Current 30 seconds80 A
Overload Current 1 hour30 A
Max Break – 30 A @ 450 V5 cycles
Max Short Circuit Current -0.5 second200 A
Min Insulation Resistance1,000 MΩ @ 500 VDC
Contact Resistance (Max)5.0 mΩ
Contact Resistance (Typical)3.5 mΩ
Operate Time (Max, incl bounce)30 ms
Release Time (Max)10 ms
Shock - Functional, 1/2 Sine, 11 ms20 G
Shock – Destructive, 1/2 Sine, 11 ms50 G
Operating Temperature-40°C to 85°C
Ingress ProtectionIP54
Mechanical life1,000,000 cycles
Auxiliary Contacts
Contact ArrangementNot available
Coil
Coil12 VDC24 VDC
Nominal Voltage12 VDC24 VDC
Pick-up Voltage (Max)9 VDC18 VDC
Drop-out Voltage (Min)0.8 VDC1.6 VDC
Coil Resistance48 Ω192 Ω
Coil Power at Nominal Voltage3 W3 W
Resistive Load Switching (Make / Break Data)
VoltageCurrentCycles
Polarity Sensitive Version
450 V20 A50,000
450 V10 A10,000
450 V20 A75,000 (MAKE ONLY)
450 V30 A50,000 (MAKE ONLY)
800 V15 A50,000 (MAKE ONLY)
1,000 V10 A30,000 (MAKE ONLY)
1,000 V10 A250 (BREAK ONLY)

Table 2 of the RER02 datasheet, Rev F, as printed. Resistive load; 1 cycle = 1 make + 1 break.

Datasheet notes
  1. Contactor may be used above Max Switching Voltage if the application does not require significant load breaking. Please contact Rincon Power to discuss in more detail.
  2. Attach cables and busbars directly to the main terminal pad. Do not use washers or other materials between the contactor power terminals and the conductor.
  3. Continuous current tested with 85°C temperature rise at the power terminals. Terminal temperature should be limited to 150°C.
  4. Coil terminals are non-polar.
  5. Contactor is operated by a coil that changes resistance with temperature: Maximum coil voltage will be lower than indicated at temperatures above 25°C, and higher than indicated at temperatures below 25°C.
  6. Pick-up Voltage and Drop Out Voltage will be lower than indicated at temperatures below 25°C and higher than indicated at temperatures above 25°C.
  7. Nominal Coil Voltage for Pick-up Current, Coil Current and Coil Power specifications, Current/Wattage will be lower than indicated at temperatures above 25°C and higher than indicated at temperatures below 25°C.

From the RER02 datasheet, Rev F. Download the datasheet for graphs, dimensions and installation.

Part numbers

Build your RER02 part number

Choose each option and the part number updates. Only standard part numbers from the datasheet are offered. Copy it, or request a quote for that exact part.

Part number
RER02P1AX
Contact Polarity
Mounting
Coil
Auxiliary Contacts
4 standard part numbers in the RER02 SeriesRequest a quote for this part →

Options and part numbers from the RER02 datasheet. Other combinations may be available as custom builds.
