High Voltage Contactors

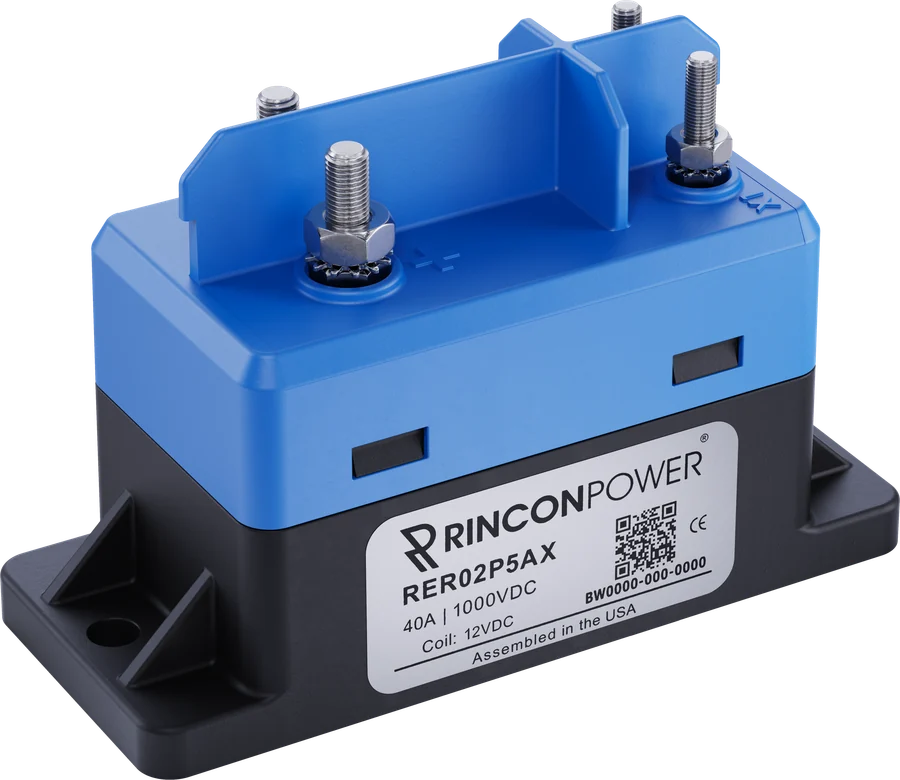

RER02P5 Series

The RER02P5 Series are compact high voltage DC relays designed for pre-charge and auxiliary DC control applications requiring a specific mechanical form factor. Based on the proven RER02 electrical platform, the RER02P5 Series provides a cost-effective solution for systems where full performance specifications of higher-end pre-charge relays are not required. With sealed construction and a compact footprint, the RER02P5 Series is well suited for controlled capacitor charging, DC bus discharge, and auxiliary DC switching in electric vehicles, energy storage systems, and industrial equipment. These relays offer a practical balance of form-factor compatibility, reliability, and value.

Continuous duty
40 A
System voltage
1,000 VDC
Mechanical life
1,000,000 cycles

Features and applications

RER02P5 at a glance

Features

  • Compact sealed DC relay construction
  • Form-factor compatible mechanical layout
  • Optimized for pre-charge and auxiliary DC switching
  • Cost-effective alternative for compatible designs
  • Low power coil options available
  • Fast operate and release times
  • Suitable for capacitive charging and discharge circuits
  • RoHS and REACH compliant
  • Designed and Assembled in the USA

Typical applications

  • Pre-charge circuits in inverter-based systems
  • Capacitor charging and controlled discharge networks
  • Electric vehicle power electronics
  • Industrial DC control and auxiliary switching
  • Form-factor compatible pre-charge applications
  • Auxiliary DC power switching

Datasheet

Graphs, dimensions, drawings and installation notes are in the RER02P5 datasheet (Rev B).

Download datasheet

Datasheet specifications

RER02P5 performance

Specifications
Contact ArrangementForm X, SPST NO
Max Switching Voltage1,000 VDC
Dielectric Withstand Voltage (Max Leakage Current: 1 mA)3,000 VAC, 1 minute contacts to coil
Dielectric Withstand Voltage (Max Leakage Current: 1 mA)3,000 VAC, 1 minute across open contacts
Continuous Current (4 mm² conductor)20 A
Continuous Current (13 mm² conductor)40 A
Overload Current 30 seconds80 A
Overload Current 1 hour30 A
Max Break – 30 A @ 450 V5 cycles
Max Short Circuit Current -0.5 second200 A
Min Insulation Resistance1,000 MΩ @ 500 VDC
Contact Resistance (Max)5.0 mΩ
Contact Resistance (Typical)3.5 mΩ
Operate Time (Max, incl bounce)30 ms
Release Time (Max)10 ms
Shock - Functional, 1/2 Sine, 11 ms20 G
Shock – Destructive, 1/2 Sine, 11 ms50 G
Operating Temperature-40°C to 85°C
Ingress ProtectionIP67,
Mechanical life1,000,000 cycles
Auxiliary Contacts
Contact ArrangementNot available
Coil
Coil12 VDC24 VDC
Nominal Voltage12 VDC24 VDC
Pick-up Voltage (Max)9 VDC18 VDC
Drop-out Voltage (Min)0.8 VDC1.6 VDC
Coil Resistance48 Ω192 Ω
Coil Power at Nominal Voltage3 W3 W
Resistive Load Switching (Make / Break Data)
VoltageCurrentCycles
Polarity Sensitive Version
450 V20 A5,000
450 V10 A10,000
450 V20 A75,000 (MAKE ONLY)
450 V30 A50,000 (MAKE ONLY)
800 V15 A50,000 (MAKE ONLY)
1,000 V10 A30,000 (MAKE ONLY)
1,000 V10 A250 (BREAK ONLY)

Table 2 of the RER02P5 datasheet, Rev B, as printed. Resistive load; 1 cycle = 1 make + 1 break.

Datasheet notes
  1. Contactor may be used above Max Switching Voltage if the application does not require significant load breaking. Please contact Rincon Power to discuss in more detail.
  2. Attach cables and busbars directly to the main terminal pad. Do not use washers or other materials between the contactor power terminals and the conductor.
  3. Continuous current tested with 85°C temperature rise at the power terminals. Terminal temperature should be limited to 150°C.
  4. Coil terminals are non-polar.
  5. Contactor is operated by a coil that changes resistance with temperature: Maximum coil voltage will be lower than indicated at temperatures above 25°C, and higher than indicated at temperatures below 25°C.
  6. Pick-up Voltage and Drop Out Voltage will be lower than indicated at temperatures below 25°C and higher than indicated at temperatures above 25°C.
  7. Nominal Coil Voltage for Pick-up Current, Coil Current and Coil Power specifications, Current/Wattage will be lower than indicated at temperatures above 25°C and higher than indicated at temperatures below 25°C.

From the RER02P5 datasheet, Rev B. Download the datasheet for graphs, dimensions and installation.

Part numbers

Build your RER02P5 part number

Choose each option and the part number updates. Only standard part numbers from the datasheet are offered. Copy it, or request a quote for that exact part.

Part number
RER02P5AX
Contact Polarity
Mounting
Coil
Auxiliary Contacts
2 standard part numbers in the RER02P5 SeriesRequest a quote for this part →

Options and part numbers from the RER02P5 datasheet. Other combinations may be available as custom builds.
